Oil Tanks Pressure Vessels Pipe Welding Rollers 88000lbs Capacity

Name: Oil Tanks Pressure Vessels Pipe Welding Rollers 88000lbs Capacity
Brand: Weldsuccess
Price: 1 USD

China Oil Tanks Pressure Vessels Pipe Welding Rollers 88000lbs Capacity wholesale

Brand Name : Weldsuccess

Model Number : HGK - 40

Certification : ISO / CE / CO

Place of Origin : CHN

MOQ : 1 set

Price : Negotiation

Payment Terms : T/T, L/C, D/P, Western Union

Supply Ability : 5 Sets Per Month

Delivery Time : 10 Days

Packaging Details : Wooden Case

Capacity : 40000 kg / 88000 lbs

Name : Pipe Welding Rollers

Delivery time : 15 days

Package way : Wooden case

Turning speed : Digital readout 1-1000 mm / min

Voltage : 380V / 480V 50/60Hz

Tank diameter : 500 - 4800 mm

Contact Now

Oil Tanks Pressure Vessels Pipe Welding Rollers With 88000lbs Capacity To European Market

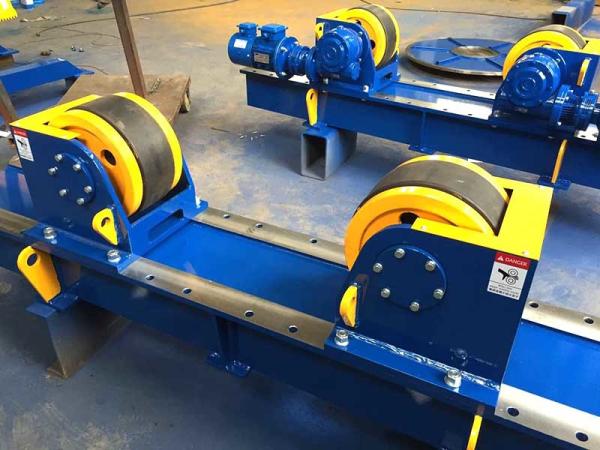

Tank Turning Roll / Pipe Welding Rollers

1. Medium range series has been engineered for the effective positioning of long cylindrical work-pieces. 2. Oil tanks, pressure vessels, and pipe are applications that utilize turning rolls.

3. Long objects that are not cylindrical may be adapted with the aid of custom designed support rings.

4. We design incorporates overload discs on each wheel that prevent excessive loads from damaging the tires.

Pipe Welding Rollers Specification

Model	HGK - 5	HGK - 10			HGK - 20	HGK - 30	HGK - 40
Max Capacity	5 T	10 T			20 T	30 T	40 T
Roller Diameter (mm)	250	300			350	350	400
Roller Width (mm)	140	170			180	180	200
Working Range (mm)	250-2800		300-3200	500-4500		500-4500	500-4800
Roller Speed (mm/min)	1 - 1000
Motor Power (kw)	2 * 0.37	2 * 0.55			2 * 1.1	2 * 1.5	2 * 1.5

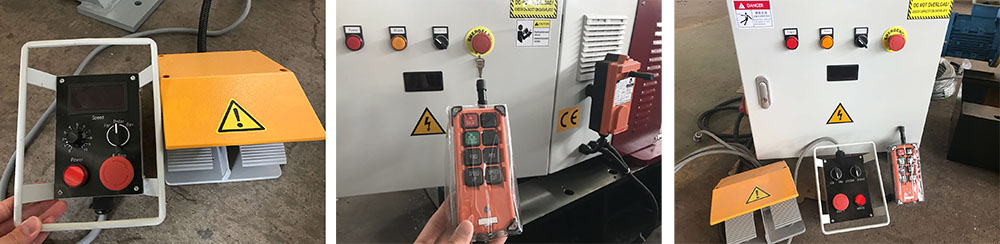

Control Way	Remote hand control + Foot pedal
Option :	□ Bolt Adjustment □ Lead Screw Adjustment

Details parts brand On Pipe Welding Rollers

1. Danfoss / Yaskawa inverter

2. ABB / Invertek motor

3. Cable / Shuntian Reducer

4. Schneider / Siemens electric system

Pipe Welding Rollers Installation

1. Normally the Pipe Welding Rollers shipped with fully installation.

2. It's easy to installate via our detail drawings supported.

3. We also have engineers supply door to door installation service, but customer have to pay the plane tickets.

Oil Tanks Pressure Vessels Pipe Welding Rollers 88000lbs Capacity

PLEASE SNED US YOUR INQUIRY FOR MORE DETAILS NOW.
